Asus ROG Strix B550-F Gaming WiFi II AMD AM4 ATX Gaming Motherboard in Pakistan

Home PC Addons Motherboard Asus ROG Strix B550-F Gaming WiFi II AMD AM4 ATX Gaming Motherboard

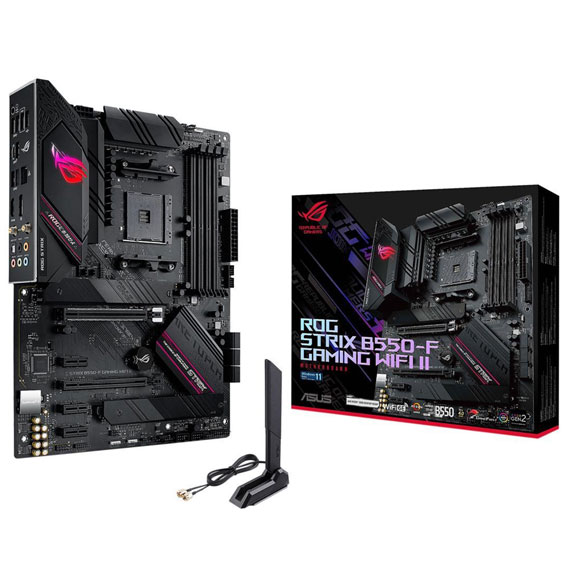

Asus ROG Strix B550-F Gaming WiFi II AMD AM4 ATX Gaming Motherboard

Rs 73,999

Item Code:

ASU049

Model:

B550-F

Brand:

ASUS

Warranty:

One Year Card Warranty

Availability:

Call

Shipping Cost:

Rs 500 per unit (For Karachi Only)

Shipping Cost:

Rs 1,500 per unit (Outside Karachi)

Quantity

Easy & Secure Payment

7 Days Replacement

Fast Shipping Nationwide

100% Genuine Products

Brand	ASUS
Series	ROG
Model	STRIX B550-F GAMING WIFI II

CPU Socket Type	AM4
CPU Type	Supports AMD Ryzen 5000 / 3000 Series Processors* Supports AMD Ryzen 5000 / 4000 G-Series Processors*

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5100(OC) / 4866(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 4000 G-Series Processors) * DDR4 4800(OC) / 4666(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 3000 Series Processors) *

Number of Memory Slots

4x288pin (DDR4)

Memory Standard

DDR4 5100(OC) / 4866(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 4000 G-Series Processors) *

DDR4 4800(OC) / 4666(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 3000 Series Processors) *

PCI Express 4.0 x16	1 x PCI Express 4.0 x16
PCI Express 3.0 x16	1 x PCI Express 3.0 x16* * Supports x4 mode. * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3.
PCI Express x1	3 x PCIe 3.0 x1

SATA 6Gb/s	6 x SATA 6Gb/s
M.2	AMD Ryzen 5000 and 3000 Series / 5000 and 4000 G-Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD B550 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* * When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled.
SATA RAID	0/1/10

Back I/O Ports	2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports 1 x Wi-Fi Module 1 x DisplayPort 1 x HDMI port 1 x Intel I225-V 2.5G Ethernet 1 x Optical S/PDIF out 5 x Audio jacks 1 x BIOS FlashBack button
